CATS™ II
The world's most powerful measurement tool for wireless charging
___________
___________
___________
___________
HIGHEST QUALITY COMPONENTS, CALIBRATED TO EXTREME PRECISION - TRUSTED BY THE INDUSTRY
As the only test tools validated and certified by the WPC, CATS I and CATS II offer the very best technology in wireless charging test systems and set the standard for the industry.
CATS II is engineered to deliver highly accurate, reliable results, and primed for the flexibility demanded by the fast-growing field of wireless charging. It is designed for compliance testing of wireless power devices with Extended Power Profiles (EPP) up to 31.5W, yet has the capability to test Baseline Power Profiles (BPP) between 0-5W.
CATS II is compliant with the latest specifications for Qi, the world’s leading wireless charging interface, the Shared Mode functionality for Qi, and published nok9 standards Rainbow and Typhoon. Developed through our shared vision with the WPC on the future of wireless charging technology, CATS II is designed to flexibly adapt to new standard updates and developments.
Its unique forward compatibility, ease of use and industry-leading performance makes CATS II the world’s most powerful test system in the wireless charging category.

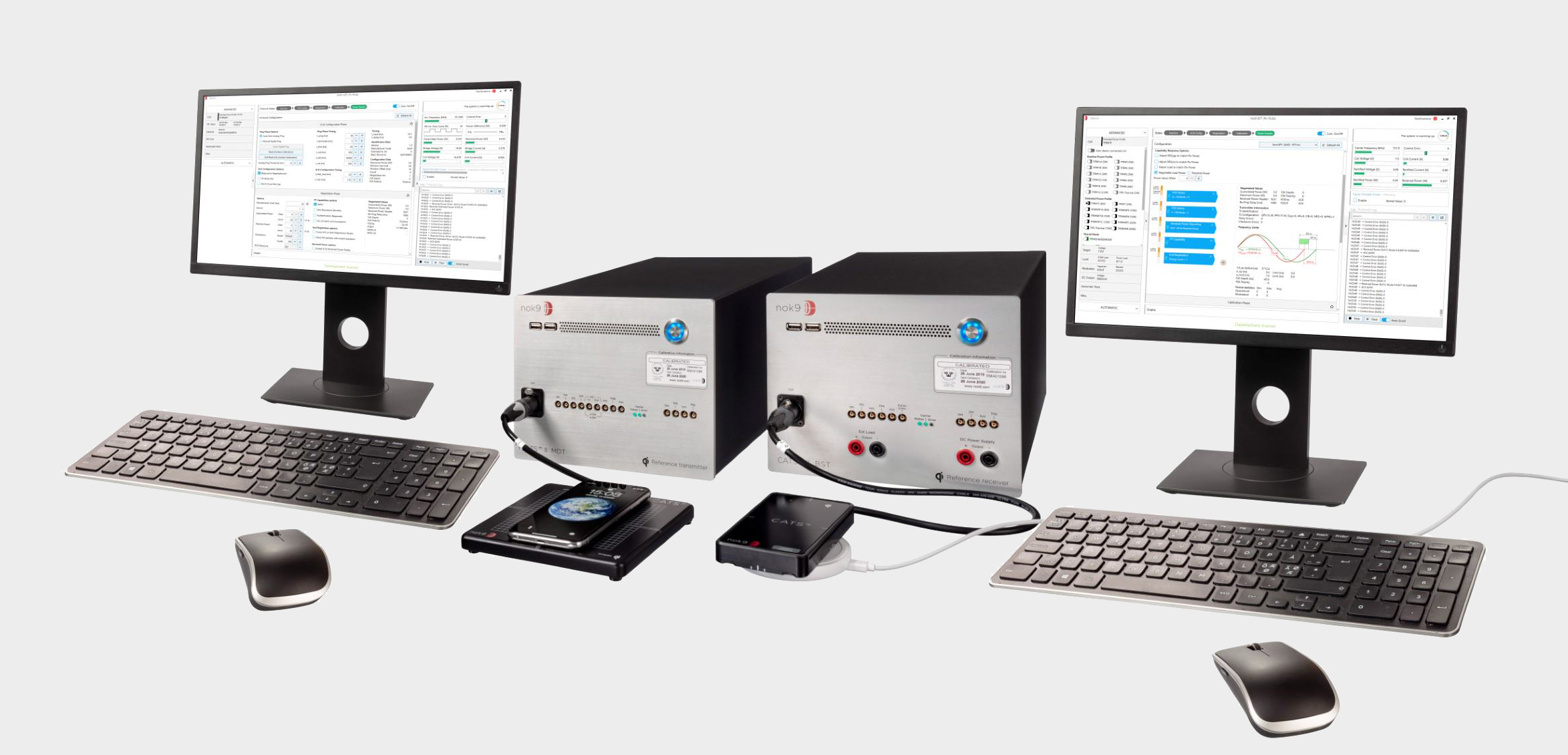

CATS II MDT & CATS II BST

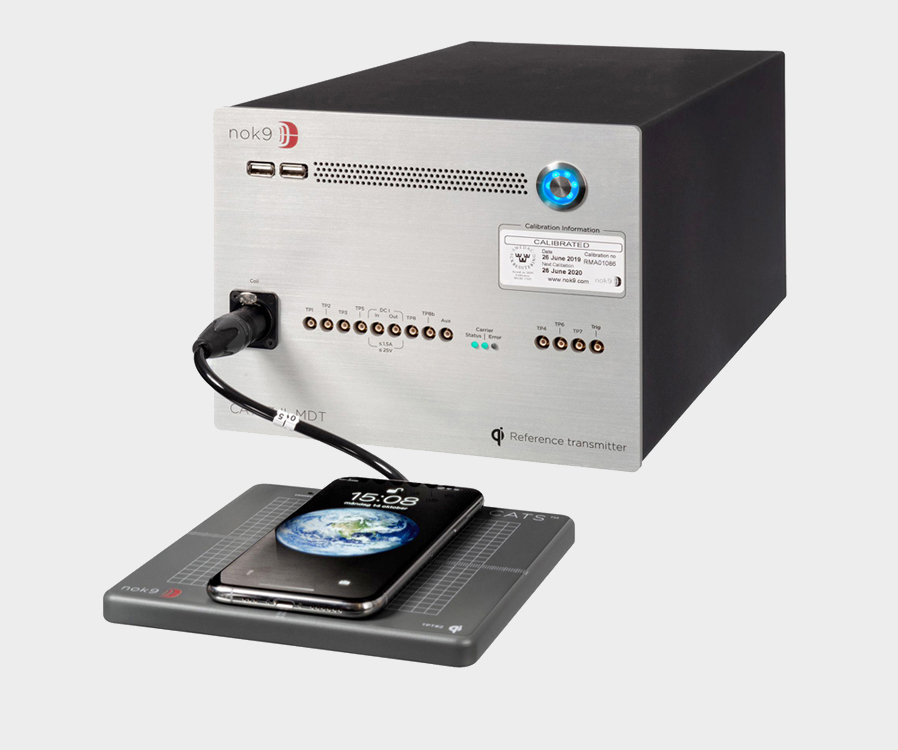

CATS II MDT with receiver under test

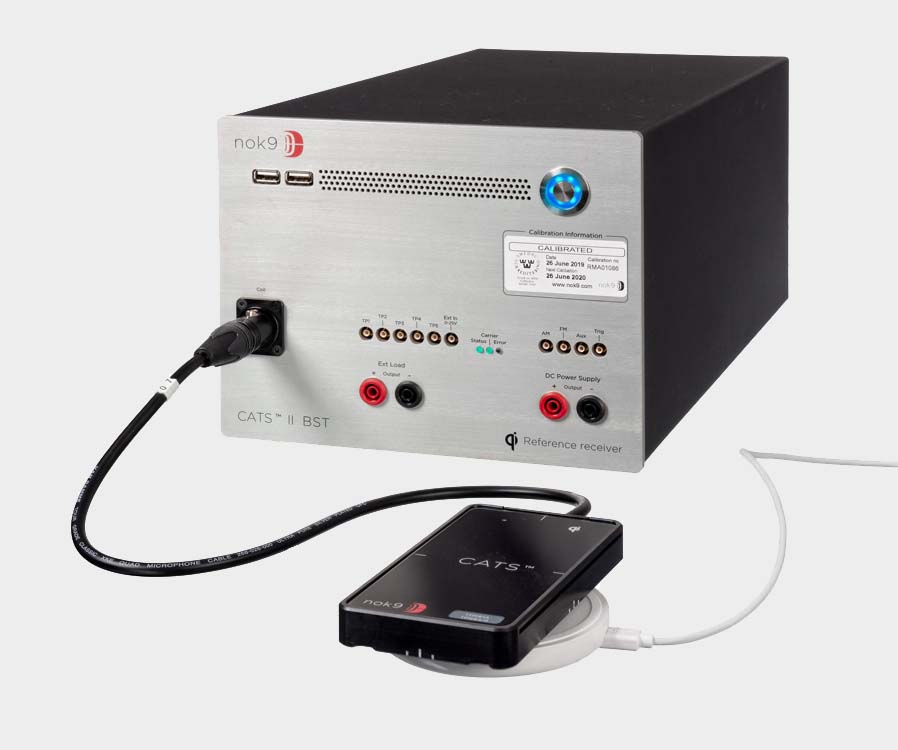

CATS II BST with transmitter under test
SYSTEM OVERVIEWS
CATS II BST
Base Station Tester
CATS II MDT
Mobile Device Tester
TECHNICAL SPECIFICATIONS
CATS II BST
Electrical characteristics:
- 100-240 V AC / 50/60 Hz
- 4 A max (100 V AC)
- 2 A max (240 V AC)
Physical characteristics:
- Width 229 mm
- Height 180 mm
- Length 410 mm
- Weight 9 kg
Computer I/O
- Keyboard/mouse/monitor/USB/Ethernet

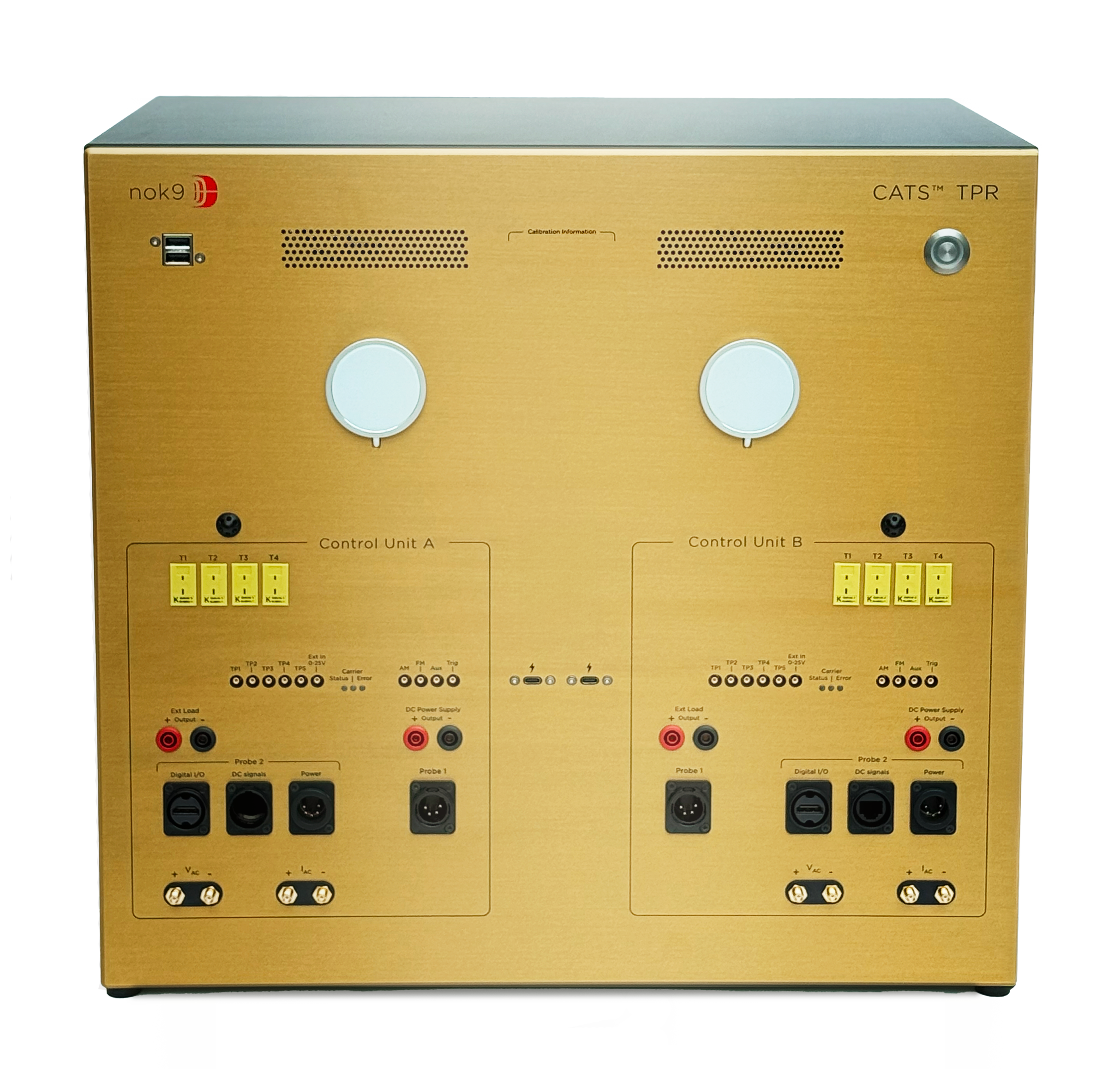

CATS II TPR
Physical characteristics:
- Width 70.1 mm
- Length 130 mm
- Thickness 12.5 mm
- Cable length 600 mm
Measurement I/O
- RX coil (XLR male)
- Test Point 1 Coil Voltage +
- Test Point 2 Coil Voltage -
- Test Point 3 Rectified Voltage
- Test Point 4 Rectified Current
- Test Point 5 Coil Current
- Ext Load External Load
- Mod AM Demodulator
- AUX1 FSK Modulator
- AUX2 Unassigned
- Trigg Trigger Out
CATS II MDT
Electrical characteristics:
- 100-240 V AC / 50/60 Hz
- 4 A max (100 V AC)
- 2 A max (240 V AC)
Physical characteristics:
- Width 229 mm
- Height 180 mm
- Length 410 mm
- Weight 9 kg
Computer I/O
- Keyboard/mouse/monitor/USB/Ethernet

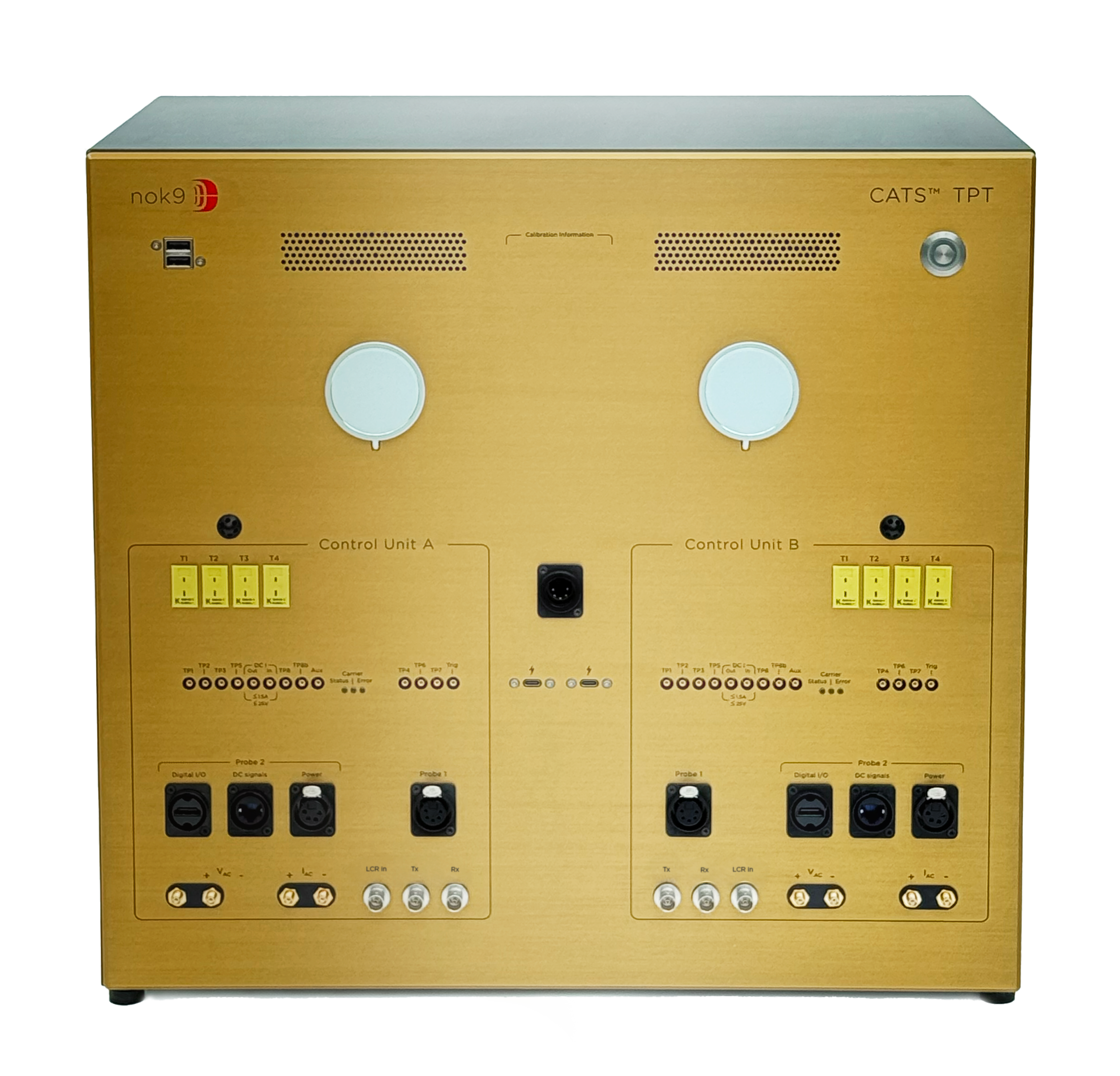

CATS II TPT
Physical characteristics:
- Width 150 mm
- Length 150 mm
- Thickness 12.5 mm
- Cable length 150 mm
Measurement I/O
- RX coil (XLR male)
- Test Point 1 Buck Voltage
- Test Point 2 Buck Current
- Test Point 3 Coil Voltage
- Test Point 5 Coil Current
- Test Point 9 Supply Current
- Test Point 10 Supply Voltage
- Test Point 8 Half Bridge 1 Switch Node
- Test Point 8b Half Bridge 2 Switch Node
- Test Point 3a Coil Voltage Raw
- Test Point 4 Voltage Demodulation
- Test Point 6 Phase Demodulation
- Test Point 7 Current Demodulation
- Trigg Trigger Out
